Your position:Home>Valve>Ammonia balance valve

PRODUCTS

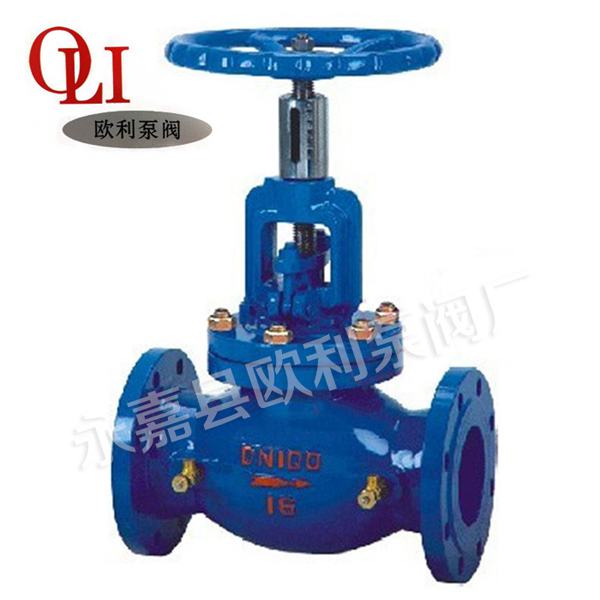

Ammonia balance valve

Dateline:2014-11-30    Hits:

Balancing valve is a valve with a special function, it has good flow characteristics can distribute the traffic flow, the realization of quantitative, can effectively solve the heating (air conditioning) system at room temperature in the presence of uneven cold and hot issues. Because the opening instructions, opening and locking device forsmall valve pressure flow measurement with the valve, so as long as the proper specification in each branch and the user entrance installed on the balance valve,and one-time debugging with intelligent instruments specially after the lock, the total amount of water system can be controlled in a reasonable range, thus to overcomethe "high flow, unreasonable phenomenon of small temperature difference". This product is an ideal product for the heating system of the medium, the highesttemperature is 100 DEG C.

Part name valve body, valve cover, valve stem seal ring, a filler pressing sleeve valve stem nut washer packing

Stainless steel material of gray iron cast copper asbestos rubber plate of expanded graphite

Two, the material of main parts

Three, the main technical parameters

Nominal pressure

(MPa) the test pressure (MPa) working pressure (MPa) applicable temperaturesuitable medium

Seal P20 P12 shell

1.6 2.4 1.76 1.5 1.6 is less than or equal to 100 DEG C water, oil and other non corrosive liquid

Four, the main connection dimensions

Nominal diameter (mm) size (mm)

L H H1 D0

1513015016080

2015016017080

2516018219780

3218019220790

40200250270100

50230264284120

65290380410200

80310413448200

100350446506240

125400540595240

150480623688360

200495687762400

250622782867500

3006989141009500

3507879681073680

40091410371152680

50097814401440 -

600129517901790 -
